This article show you how to use CN900 Mini perform all key lost programming for Toyota G chip.
What you need?
CN900 Mini Programmer or ND900
TOYOKEY OBD Adapter
Smart CN900 Mini Guide
Monday, May 20, 2019
Thursday, February 21, 2019
Smart CN900 Mini Clear Toyota Smart Card
This article show a gudie on how to use Smart CN900 Mini programmer to clear/empty Toyota Samrt Card.
Procedures:

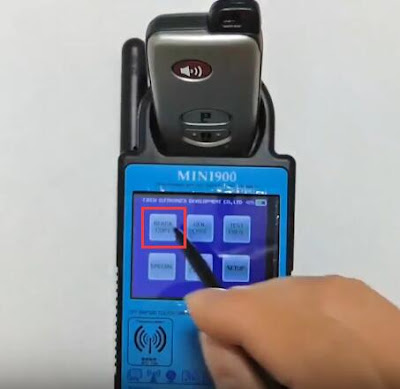

Power Smart CN900 Mini,and put Toyota Smart key into the coil
Then clcik “Read & Copy”
Procedures:
Power Smart CN900 Mini,and put Toyota Smart key into the coil
Then clcik “Read & Copy”
Monday, December 24, 2018
Smart CN900 Mini Newest Update Information
Recently,TJECU CN900 have update to new version,and here UOBD2 want to share the update information for us.
88 Chip (update version of 48 chip)
This type chip can not be identified by other device in the market,it was named by TJECU.And if you use other device or old CN900 to identify it,you will get the "48 chip"
7A chip (7961M)
Difference between YS31,CN5 and YS41:
CN5 include:YS31 and YS41,THEY HAVE SAME FUNCTION
How to Generate 64 chip?
You can use CN5 chip to generate 64 chip
http://www.uobdii.com/wholesale/mini-cn900-key-programmer.html
88 Chip (update version of 48 chip)
This type chip can not be identified by other device in the market,it was named by TJECU.And if you use other device or old CN900 to identify it,you will get the "48 chip"
7A chip (7961M)
Difference between YS31,CN5 and YS41:
CN5 include:YS31 and YS41,THEY HAVE SAME FUNCTION
How to Generate 64 chip?
You can use CN5 chip to generate 64 chip
http://www.uobdii.com/wholesale/mini-cn900-key-programmer.html
Tuesday, October 23, 2018
How to Update Smart CN900 Mini?
Here comes the step-by-step guide on how to update Smart CN900 Mini.
Step 1:Download CN900 Mini update software here:
https://mega.nz/#!OgFyGAYZ!_-tjoSD3HR6kPVsAw04HFspp0zg5K7JYo3njPl-vVH8
Step 2:Exact the zip file,and then run the CN900-MINI-V2.7.exe
Step 3:Connect USB Cable to CN900 Mini,and click "CONNECT" button.
Note:If the connection built successfully,it will show you the CN900 Mini information,include SN and old Firmware version at right low conrner.
Step 4:It wil pop-up a new version information,just click "UPDATE" button to begin update progress.
Then the CN900 Mini Update software will update the cn900 mini automatically.
Just wait it finish.
When it finish,it will reboot the CN900 mini.
http://www.uobdii.com
Step 1:Download CN900 Mini update software here:
https://mega.nz/#!OgFyGAYZ!_-tjoSD3HR6kPVsAw04HFspp0zg5K7JYo3njPl-vVH8
Step 2:Exact the zip file,and then run the CN900-MINI-V2.7.exe
Step 3:Connect USB Cable to CN900 Mini,and click "CONNECT" button.
Note:If the connection built successfully,it will show you the CN900 Mini information,include SN and old Firmware version at right low conrner.
Step 4:It wil pop-up a new version information,just click "UPDATE" button to begin update progress.
Just wait it finish.
When it finish,it will reboot the CN900 mini.
http://www.uobdii.com
Tuesday, October 31, 2017
Here are the results of the TJECU CN900mini latest version (1.32) new "Partial 48 Decoding and Copy" function tested on VW Golf MK 4 , year 2002. Was Magic 2:
You have to update to version 1.32
Decode button is now working. After pressing the decode button, you have to sniff data from ignition lock of the car.
After that, decoding starts, and lasts for AT LEAST 20 minutes. You can see at the picture, that decoding is already 20 minutes in progress.
After that I left it for another 40 minutes. When I came back, the decoding was finished.
As you can see, the Secret Key is visible, but it shows "xxxx xxxx"
I don't know what the meaning of those "x"-es is.
After the decoding, the function "Unlock" is working.
Also "copy" button is shown for coping to CN6 chip. I had no CN6 chip to test.
The problem here is that decoding time is very long. Almost 1 hour, I think device isn't cloning ONLY the chip ID, So it has to be password or security bytes.
After this 1.34.2.19 update, ID48 cloning is working, I can confirm.
FYI, I always order cn6 transponder for id 48 for mini cn 900 from here. It's the guy who also sells CN900 mini devices. Tested and it's working (for version above 1.20).
http://www.uobdii.com/wholesale/cn6-id48-cloner-chip.html
(Duracell2 post link from Ali, but I recommend uobdii.com since it's a reliable dealer)
To sum up:
CN900 mini is just fine. This device is not as fancy or as powerful as Handy Baby, but hey CN900 mini is much cheaper and the transponder chip are also much cheaper than Handy Baby ! Most importantly, it works for cloning various transponders which are popular in the market name it 4D and 46 !!
Credits to @Duracell2, who are a poster on DK forum.
You have to update to version 1.32
Decode button is now working. After pressing the decode button, you have to sniff data from ignition lock of the car.
After that, decoding starts, and lasts for AT LEAST 20 minutes. You can see at the picture, that decoding is already 20 minutes in progress.
After that I left it for another 40 minutes. When I came back, the decoding was finished.
As you can see, the Secret Key is visible, but it shows "xxxx xxxx"
I don't know what the meaning of those "x"-es is.
After the decoding, the function "Unlock" is working.
Also "copy" button is shown for coping to CN6 chip. I had no CN6 chip to test.
The problem here is that decoding time is very long. Almost 1 hour, I think device isn't cloning ONLY the chip ID, So it has to be password or security bytes.
After this 1.34.2.19 update, ID48 cloning is working, I can confirm.
FYI, I always order cn6 transponder for id 48 for mini cn 900 from here. It's the guy who also sells CN900 mini devices. Tested and it's working (for version above 1.20).
http://www.uobdii.com/wholesale/cn6-id48-cloner-chip.html
(Duracell2 post link from Ali, but I recommend uobdii.com since it's a reliable dealer)
To sum up:
CN900 mini is just fine. This device is not as fancy or as powerful as Handy Baby, but hey CN900 mini is much cheaper and the transponder chip are also much cheaper than Handy Baby ! Most importantly, it works for cloning various transponders which are popular in the market name it 4D and 46 !!
Credits to @Duracell2, who are a poster on DK forum.
Wednesday, October 4, 2017
Recharge TJECU CN900mini Toyota G Chip Token?
Post on TJECU CN900 Mini Toyota
G chip token recharge procedure, before do this, you are required to
login the official site to bind the device with serial number and active
device.
Note:For more auto key programmer,pls visit this website:
http://www.uobdii.com/wholesale/auto-key-programmer/
1. Login your member on the cn900 mini official website, click” Personal Center”
Note:For more auto key programmer,pls visit this website:
http://www.uobdii.com/wholesale/auto-key-programmer/
1. Login your member on the cn900 mini official website, click” Personal Center”
Wednesday, August 30, 2017
Smart CN900 Mini vs. JMD Handy Baby
Customer:
I’m puzzled with two auto key programmers in your OBD2 website – Handy baby and new CN900 mini. Seems similar to each other, so which one should i take?
UOBD2 customer service:
You can get differences with the chart below:
Although Handy baby can copy more chips than CN900 Mini, Mini CN900 is
less than half of price than Handy baby key programmer.
I’m puzzled with two auto key programmers in your OBD2 website – Handy baby and new CN900 mini. Seems similar to each other, so which one should i take?
UOBD2 customer service:
You can get differences with the chart below:
Function \ Product | Handy Baby | CN900 MINI |
Image | ||
Brand/Manufacturer | JMD | TJECU |
Copy 4D / 4C | YES | YES |
Copy ID46 | YES | YES |
Copy 72G | YES | YES |
Copy ID42 | YES | YES |
Copy ID11 | YES | YES |
Copy ID12 | YES | YES |
Copy ID13 | YES | YES |
Copy ID33 | YES | YES |
4D86 DST80 (Ford) | YES | NO |
4D70 DST80 (Hyundai/ KIA) | YES | NO |
Copy ID48 | YES | NO |
After-sale service | YES | Yes |
Tech support | YES | Yes |
CE mark | YES | ? |
Update online | YES | YES |
Price | US$359 | US$189 |
